Rong Sheng Hua Yu Xin Yuan Residential Project | China

Cangzhou Demonstrative Assembly Building Project

Project Overview

Located in Cangzhou Development Zone, this project consists of two 18-storey residential buildings and nine commercial buildings. The residential buildings have one underground floor and 18 floors above ground, while the commercial buildings feature two-storey steel frame structures.

Key Features

• Location: Cangzhou Development Zone

• Residential Buildings: 18 floors above ground, 1 underground

• Commercial Buildings: 2-storey steel frame structure

• Steel Usage:

  • 1,100 tons per residential building

  • 9,000 m² per residential building

  • Steel content: 122 kg/m²

Structure

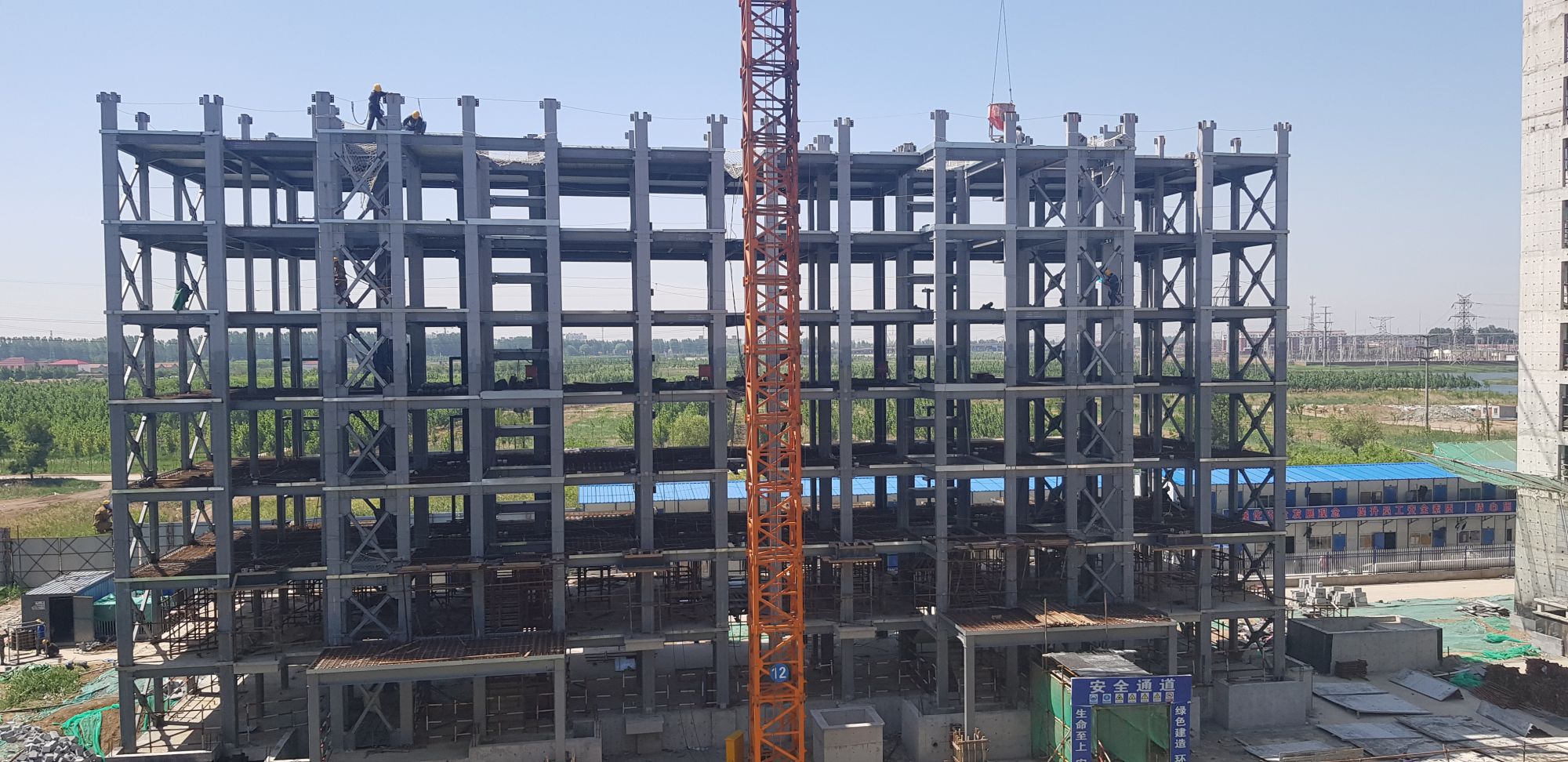

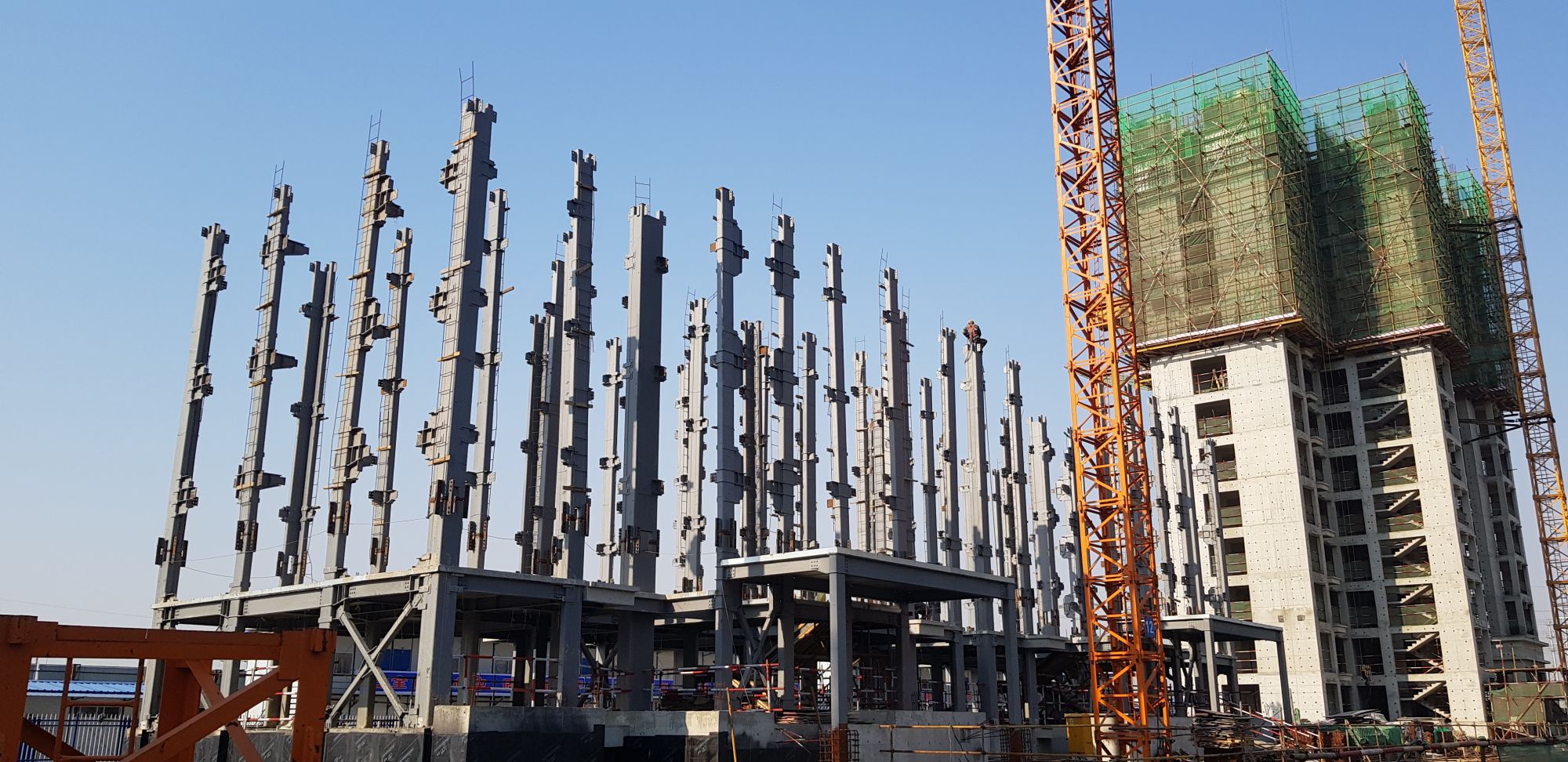

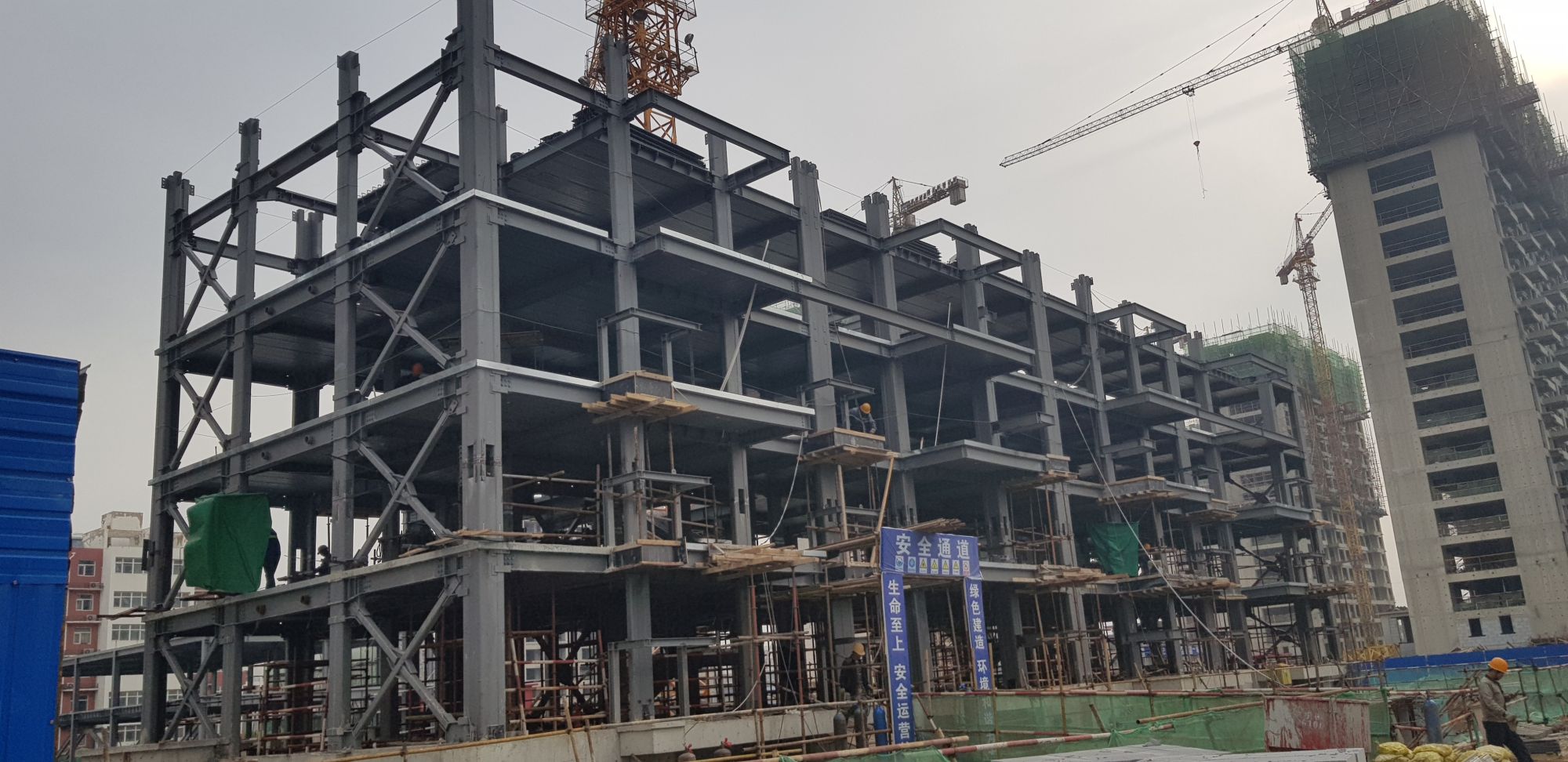

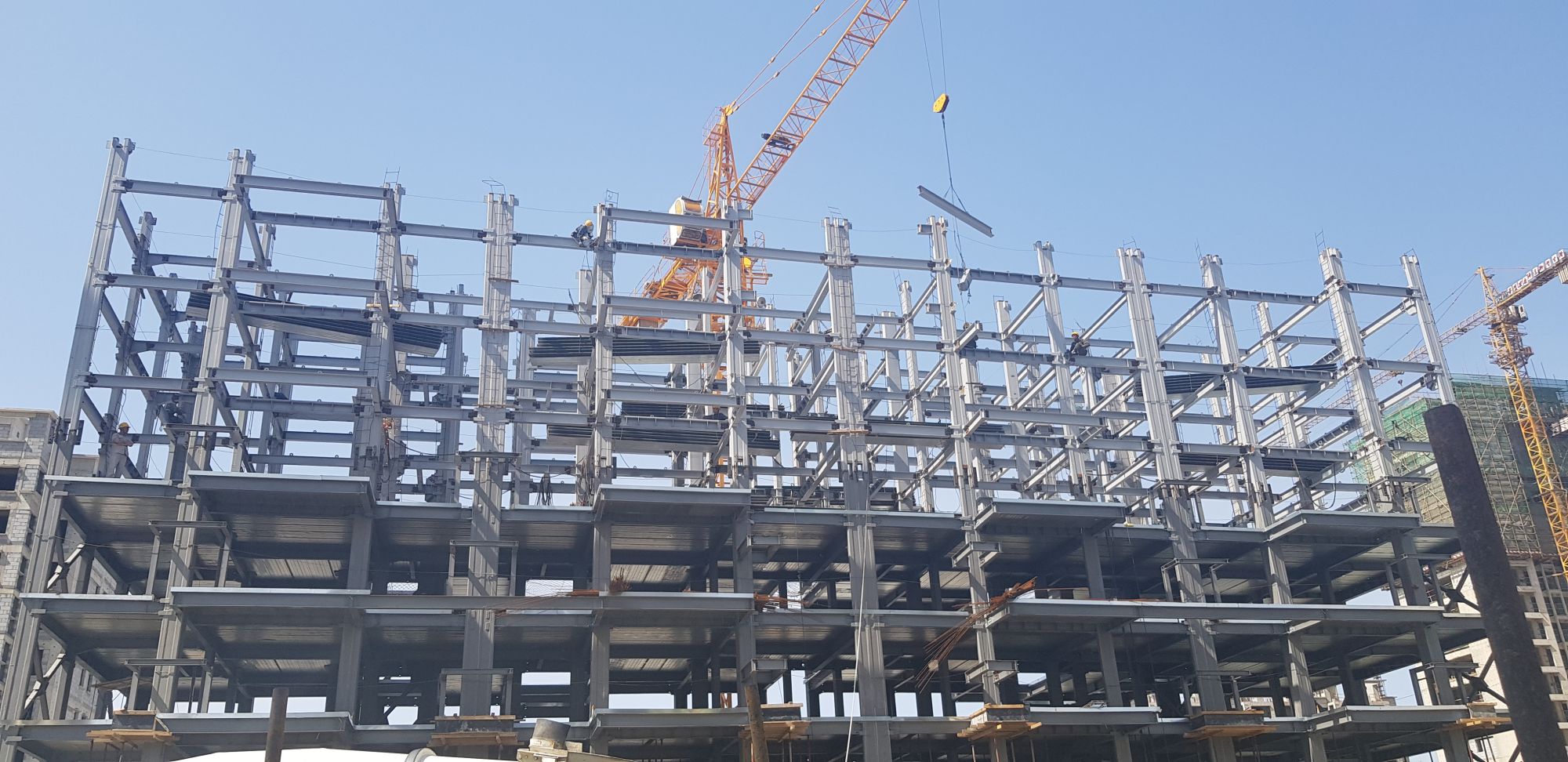

The residential buildings use L-shaped and T-shaped multicavity steel tube composite columns, filled with self-compacting concrete. Ordinary H-shaped steel beams and steel truss floor bearing plates provide structural support, while the walls are made of autoclaved lightweight aerated concrete (NALC) plates for energy efficiency.
